SOLID 3
CNC ROUTER
The Solid 3 series CNC Router offers a perfect mix of high performance and reasonable price.
SOLID 3 CNC ROUTER
STANDARD FEATURES
- Heavy, all-steel industrial frame
- All-Steel Gantry for vibration-free processing
- AC servo motor on all axes & planetary gearbox
- XY helical rack pinion, Z high precision ball screw
- Powerful spindle 4-10HP
- Intelligent motion control system
- E-Stop on electric control cabinet
- XYZ axis square linear rails for high precision and durable working
- Designed by professional team
- Affordable price
SPECIFICATION
- Working Size 1300x2500mm
- 7HP liquid cooling industrial spindle 0-24000RPM
- AC servo motor & driver
- Vaccum inhailing working table, vacuum pump
- Fast Speed 20000mm/min
- Repeatability <0.03mm/300mm
MATERIALS
- Wood
- Plastic
- Acrylic
- PVC
- MDF
- Non-ferrous metals
- Composite materials
Applications
- Sign making
- Woodworking
- Graphics & print finishing
- Metal & plastic fabrication
OPTIONS
4-12hp liquid / AIR COOLING SPINDLE
Depnd on the material and speed, we offer a range of different power spindle
HSD/Hiteco ATC SPINDLE
We offers a wide range of spindles from 4 to 42 kW, rotation speed from 1,000 to 40,000 RPM with manual or automatic Tool holders like ISO or HSK.
HSD / HITECO BORING UNITS
The boring units may have a variable number of spindles and a specific composition based on the end user’s machining requirements.
SAW + SPINDLE MODULE
The saw is quicker for cutting panel
varies knife tools
Oscillating knife, V cut knife, drag knife, round knife, kiss cut, press wheel, spindle, we have a full solution for your material
Germany knife sets
PVC VACCUM TALBE + T SLOT
You can choose T slot in the middle of table, or four sides of table
Aluminum vaccum table
Aluminum table is more durable
Yaskawa / PANASONIC ac servo motor
From Chinese stepper motor to imported AC servo, we can customize depending on your processing requirement and budget
hand wheel
With a handwheel you can operate the machine more convenient
WMH HELICAL RACK PINION
WMH high precision helical racks makes the transmission more quiet and smooth
MIST SPAY DEVICE
Spray Kesesone or Alcohol, the cutting surface more polish, and protect the tool
panel feed device
This device can push the panel to settting home position automatically
pressure roller
When cutting multi-layer board same time, use this to fix materail
Auto press panel device
Can press the panel by button, save tiem when using T slot
ROTARY DEVICE AT BACK
one rotary device can be mounted at machine back, or side

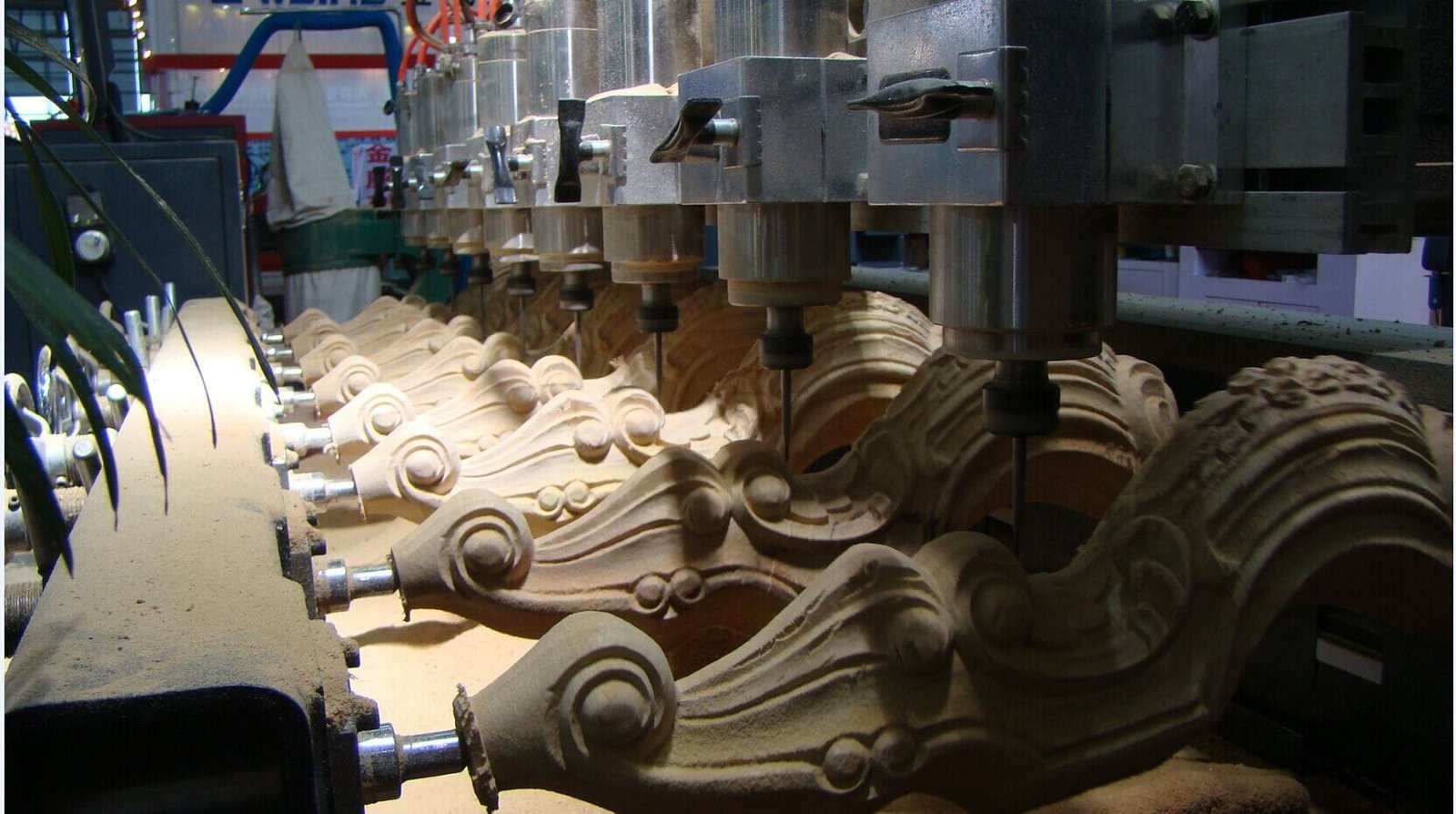

4-16 ROTARY DEVICE
We can customize 4-16 spindles rotary 4 axis (XYZA)
3d scanner
It can scan the mark point on the object, generate a file in the software
