S SERIES
CNC ROUTER
S SERIES CNC ROUTER TABLE
We manufacture innovative, industrial CNC router table, delivering high productivity and remarkable cut quality.
FEATURES
- Heavy, all-steel industrial frame
- Powerful spindle 4-12HP
- Intelligent motion control system
- XY helical rack pinion, Z high precision ball screw
- XYZ axis square linear rails
- High torque motor & driver
- Designed by professional team
APPLICATIONS
- Sign making
- Woodworking
- Graphics & print finishing
- Foam processing
- Metal & plastic fabrication
MATERIALS
- Wood
- Plastic
- Acrylic
- PVC
- MDF
- Non-ferrous metals
- Composite materials
CNC ROUTER EQUIPMENT GALLERY

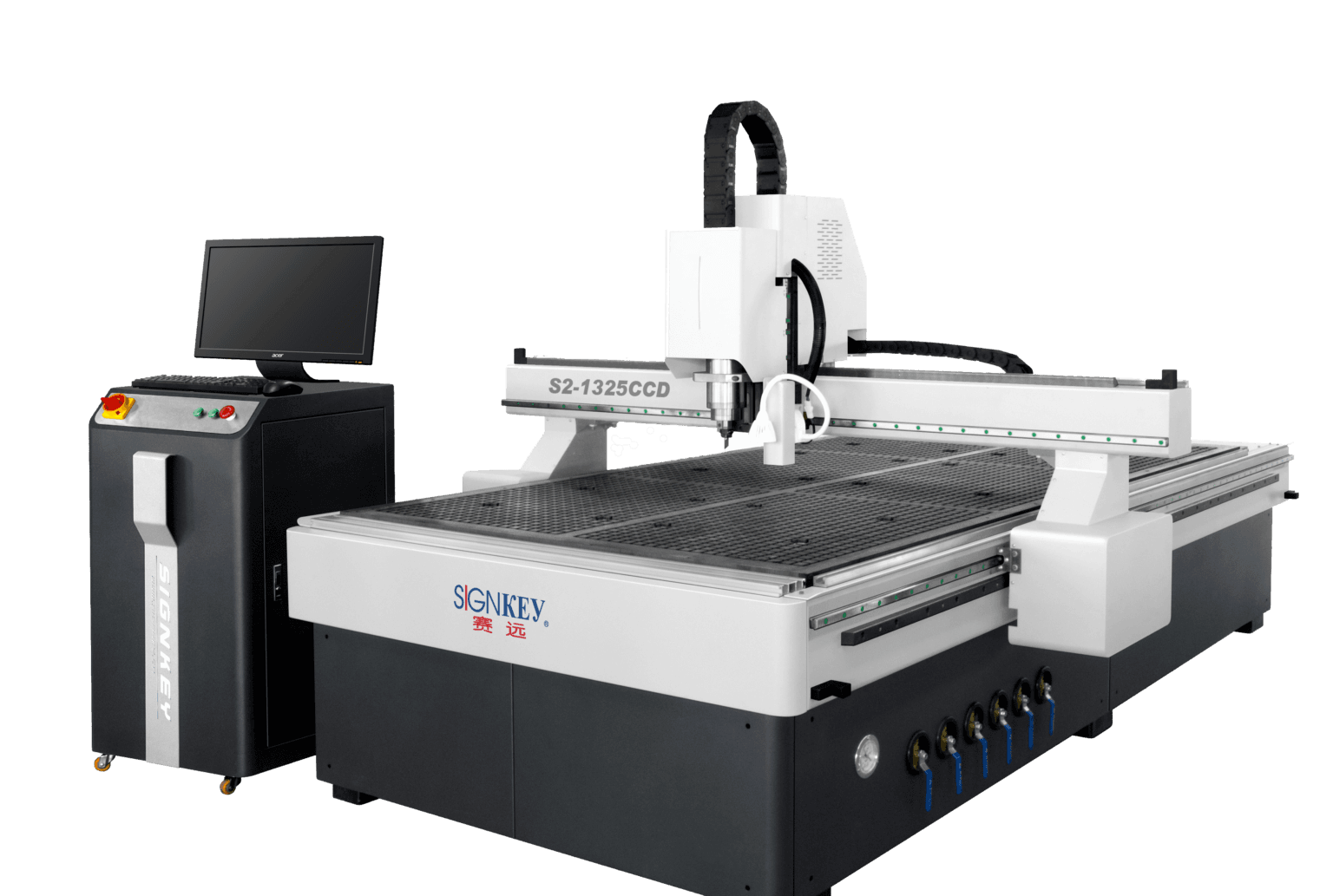

S2 CNC ROUTER TABLE - 8x4 cnc router
An entry-level CNC ROUTER of industrial productivity and flexibility
- 51 x 98 x 9.8in. work size
- Max. 6.7in. material height
- 7.37HP industrial liquid cooling spindle
- fast speed 787inch/min.
- hybrid servo motor
- XY gearbox & helical rack pinion, Z high precision ball screw
- vaccum table, with T slot
- 1000kg / 2198lbs

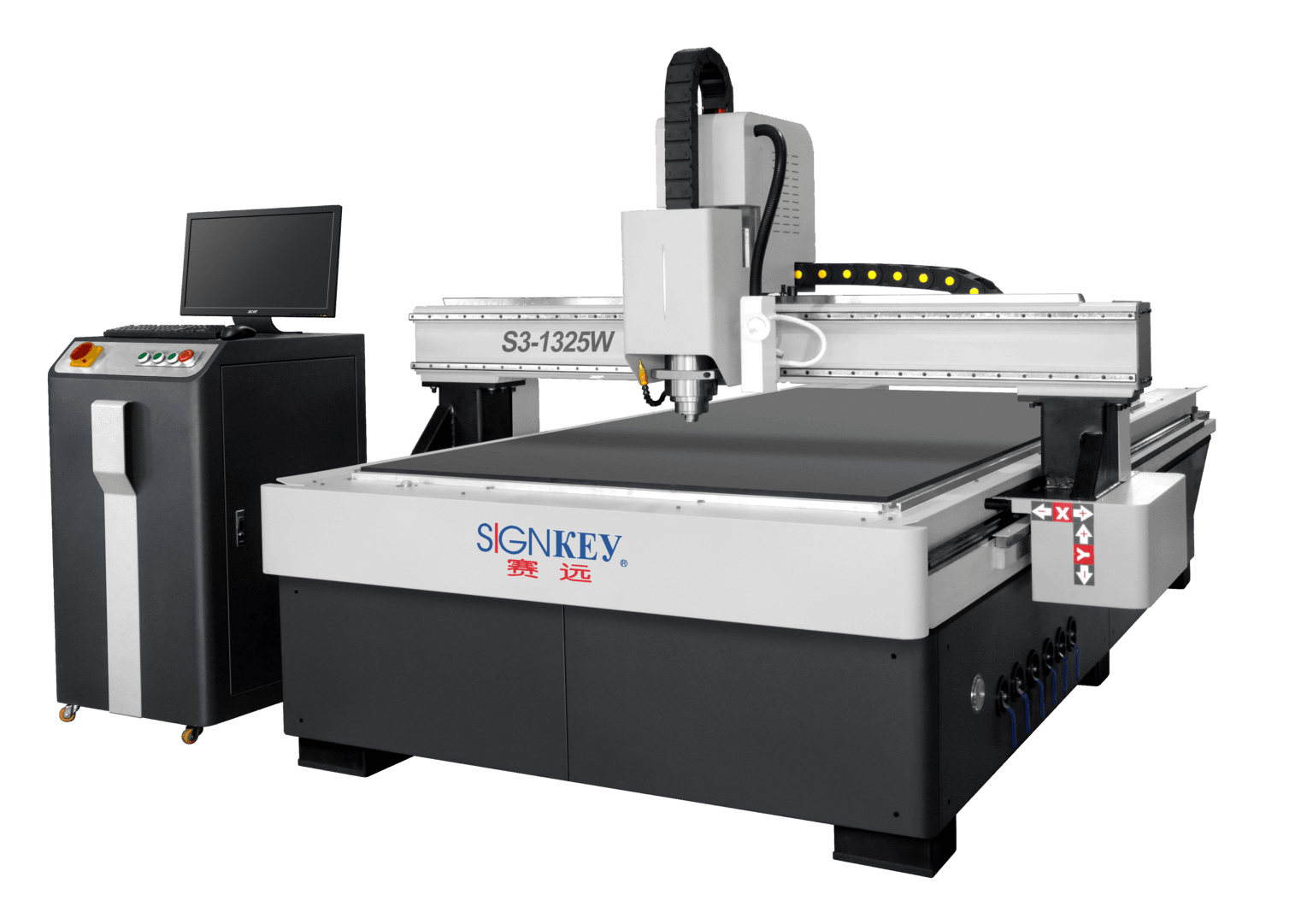

S3 CNC ROUTER TABLE - CNC Router wood & aluminum
The S3 series CNC Router, with heavy duty frame, offers a perfect mix of high performance for rigid wood, aluminum, brass, copper etc.
- 51 x 98 x 5.9in. work size
- 4HP industrial liquid cooling spindle
- fast speed 787inch/min.
- stepper motor
- XY helical rack pinion, Z high precision ball screw
- Aluminum clamping table
- 800kg / 1758lbs

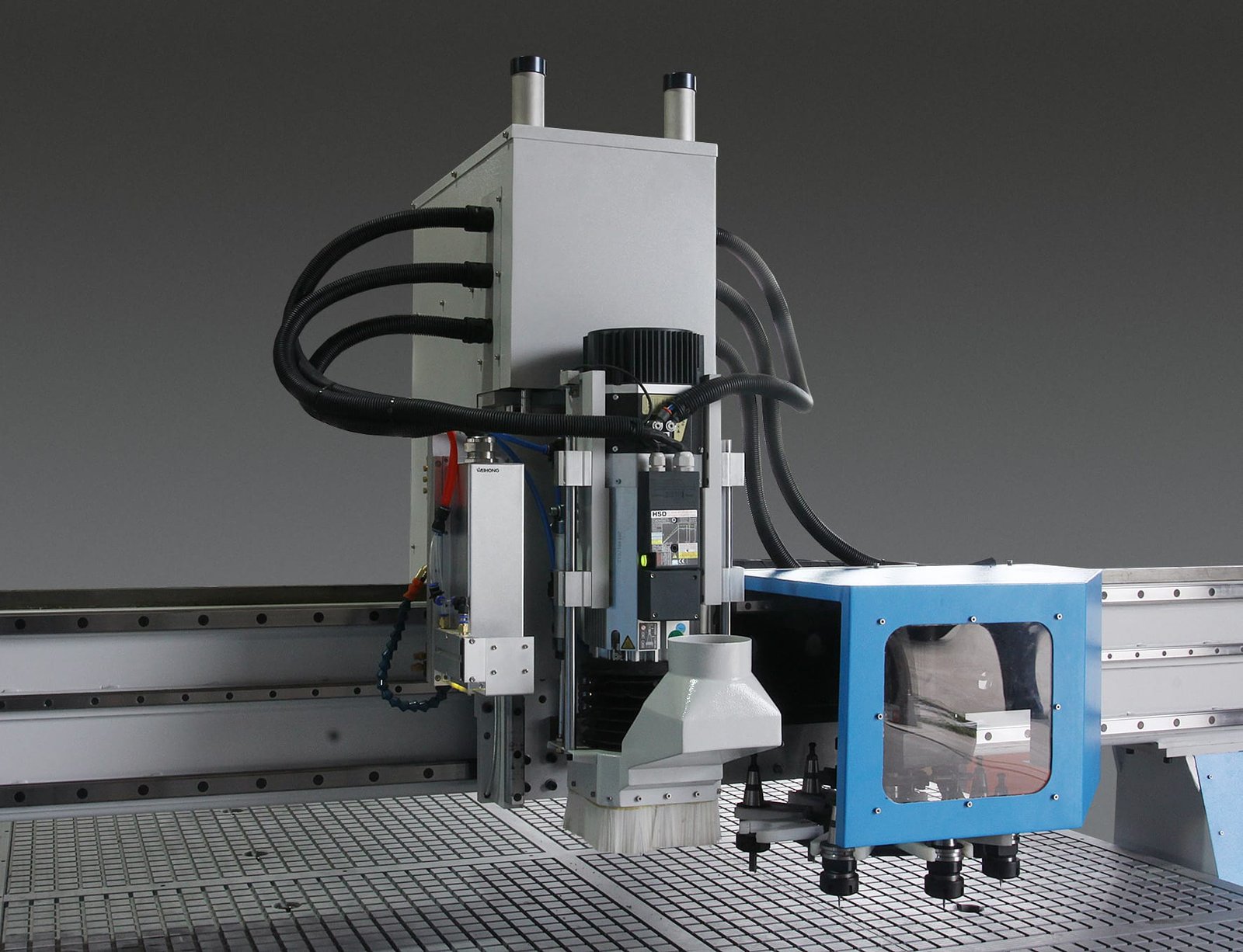

S5 ATC CNC ROUTER- CNC Router with tool changer
Heavy-duty CNC router with auto tool changing spindle. Precision driven for perfect quality, vibration-free processing of even the toughest materials
- 51 x 98 x 9.8in. work size
- Max. 6.7in. material height
- 12HP 380V ATC liquid cooling industrial spindle
- fast speed 1772inch/min.
- AC servo motor
- XY gearbox & helical rack pinion, Z high precision ball screw
- vaccum table, with T slot
- 1500kg / 3297lbs
CNC ROUTER MACHINES OPTIONS
CAMERA REGISTRATION SYSTEM
Camera can contour cutting for graphics finishing
ROTARY TOOL CAROUSEL
4-16 pcs tool postions, the spindle can change tools very quickly
Linear tool CHANGER
4-12 pcs linear postions
HSD/Hiteco ATC SPINDLE
We offers a wide range of spindles from 4 to 42 kW, rotation speed from 1,000 to 40,000 RPM with manual or automatic Tool holders like ISO or HSK.
HSD / HITECO BORING UNITS
The boring units may have a variable number of spindles and a specific composition based on the end user’s machining requirements.
4-12hp liquid / AIR COOLING SPINDLE
Depnd on the material and speed, we offer a range of different power spindle
SAW + SPINDLE MODULE
The saw is quicker for cutting panel
varies knife tools
Oscillating knife, V cut knife, drag knife, round knife, kiss cut, press wheel, spindle, we have a full solution for your material
Germany knife sets
PVC VACCUM TALBE + T SLOT
You can choose T slot in the middle of table, or four sides of table
Aluminum vaccum table
Aluminum table is more durable
Yaskawa / PANASONIC ac servo motor
From Chinese stepper motor to imported AC servo, we can customize depending on your processing requirement and budget
hand wheel
With a handwheel you can operate the machine more convenient
WMH HELICAL RACK PINION
WMH high precision helical racks makes the transmission more quiet and smooth
MIST SPAY DEVICE
Spray Kesesone or Alcohol, the cutting surface more polish, and protect the tool
panel feed device
This device can push the panel to settting home position automatically
pressure roller
When cutting multi-layer board same time, use this to fix materail
Auto press panel device
Can press the panel by button, save tiem when using T slot
ROTARY DEVICE AT BACK
one rotary device can be mounted at machine back, or side

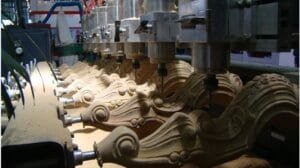

4-16 ROTARY DEVICE
We can customize 4-16 spindles rotary 4 axis (XYZA)
3d scanner
It can scan the mark point on the object, generate a file in the software
